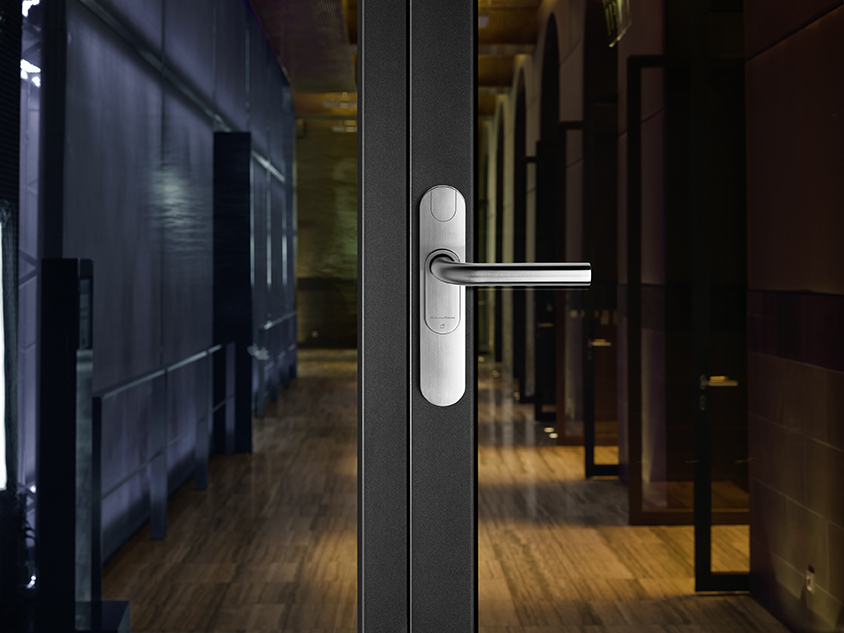

SmartHandle door fitting - for Euro Profile or Swiss Round Conventional fixing (Paxton)

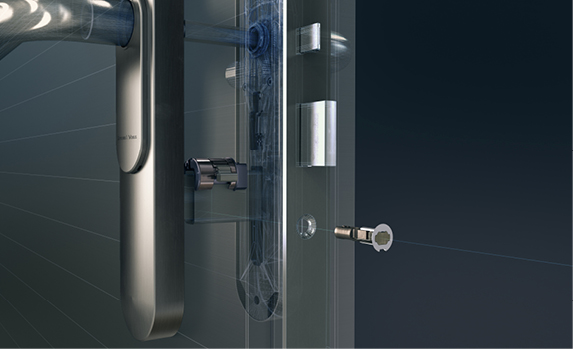

SmartHandle AX - the future of digital door fittings. Can you make good things even better? Yes! The electronic door handle "SmartHandle" is consistently orientated towards your needs and sets new standards. Thanks to its modular design, wide range of variants and innovative communication interfaces such as Bluetooth Low Energy (BLE), SimonsVoss brings a new level of intelligence, convenience and security to the door with the SmartHandle AX.Adaptive design and the interplay of metal elements not only impress visually, but also offer the greatest possible design freedom. The SmartHandle AX digital door fitting is a smart solution for interior doors that can be fixed to the existing rosette hole pattern (DIN 18251) without drilling.F1 - Euro-PZ, vertical installation, fixing to enclosed adapter plate with 195 mm long plate holes,for a distance dimension of the lock of 70 mmReact flexibly to any situation on site: The SmartHandle AX can be adapted to the door thickness, distance dimension and square. The lever handle can be mounted on the right or left. Suitable for tubular frame doors and for mounting on oval roses. Can be combined with a panic bar.Exceptionally long battery life (up to 180,000 operations in wireless online mode) Room for beauty: The AX fitting with its characteristic, adaptive design can be combined with standard lever handles from well-known manufacturers.Maximum data security thanks to the integrated secure element.Operational security is crucial. That's why we have invested in mechanical and electronic quality and stability with the AX fitting. For example, the SmartHandle AX has high-precision handle play. The test for long-term functionality was successfully completed with 1 million cycles.Made in Germany. A matter of course for us.WIRELESS ONLINE NETWORKING (868 MHZ)Reading of 5 different card setupsOpening by releasing the ZK system (quick release) with variable time settingsPermanent release (on/off) with "timer" functionOffice mode with "Timer" functionDoorMonitoring function with forend screw sensor, bolt sensor and latch sensorDoorMonitoring function with external lock sensor (lock not included in the scope of delivery)DoorMonitoring function with time-controlled return functionSite card function with up to 128 cards"Whitelist" function with up to 250 offline cardsAccess list in "offline" modeBattery status transmission and QoS (Quality of Signal)Configurable "keep-alive" event"Solution Guard"Autoconfiguration via SmartIntego Manager (only for TCP/IP GatewayNode variants)Cover contact monitoring

SmartHandle AX - the future of digital door fittings. Can you make good things even better? Yes! The electronic door handle "SmartHandle" is consistently orientated towards your needs and sets new standards. Thanks to its modular design, wide range of variants and innovative communication interfaces such as Bluetooth Low Energy (BLE), SimonsVoss brings a new level of intelligence, convenience and security to the door with the SmartHandle AX.Adaptive design and the interplay of metal elements not only impress visually, but also offer the greatest possible design freedom. The SmartHandle AX digital door fitting is a smart solution for interior doors that can be fixed to the existing rosette hole pattern (DIN 18251) without drilling.A4 - Euro-PZ, vertical installation, fixing to enclosed adapter plate, for adaptation to panic bars, please note compatibilityReact flexibly to any situation on site: The SmartHandle AX can be adapted to door thickness, distance dimension and square. The lever handle can be mounted on the right or left. Suitable for tubular frame doors and for mounting on oval roses. Can be combined with a panic bar.Exceptionally long battery life (up to 180,000 operations in wireless online mode) Room for beauty: The AX fitting with its characteristic, adaptive design can be combined with standard lever handles from well-known manufacturers.Maximum data security thanks to the integrated secure element.Operational security is crucial. That's why we have invested in mechanical and electronic quality and stability with the AX fitting. For example, the SmartHandle AX has high-precision handle play. The test for long-term functionality was successfully completed with 1 million cycles.Made in Germany. A matter of course for us.WIRELESS ONLINE NETWORKING (868 MHZ)Reading of 5 different card setupsOpening by releasing the ZK system (quick release) with variable time settingsPermanent release (on/off) with "timer" functionOffice mode with "Timer" functionDoorMonitoring function with forend screw sensor, bolt sensor and latch sensorDoorMonitoring function with external lock sensor (lock not included in the scope of delivery)DoorMonitoring function with time-controlled return functionSite card function with up to 128 cards"Whitelist" function with up to 250 offline cardsAccess list in "offline" modeBattery status transmission and QoS (Quality of Signal)Configurable "keep-alive" event"Solution Guard"Autoconfiguration via SmartIntego Manager (only for TCP/IP GatewayNode variants)Cover contact monitoring

SmartHandle AX - the future of digital door fittings. Can you make good things even better? Yes! The electronic door handle "SmartHandle" is consistently orientated towards your needs and sets new standards. Thanks to its modular design, wide range of variants and innovative communication interfaces such as Bluetooth Low Energy (BLE), SimonsVoss brings a new level of intelligence, convenience and security to the door with the SmartHandle AX.Adaptive design and the interplay of metal elements not only impress visually, but also offer the greatest possible design freedom. The SmartHandle AX digital door fitting is a smart solution for interior doors that can be fixed to the existing rosette hole pattern (DIN 18251) without drilling.A1 - Euro-PZ, suspended installation on round roses, for a lock distance of 70 to 110 mm React flexibly to any situation on site: The SmartHandle AX can be adapted to the door thickness, distance dimension and square. The lever handle can be mounted on the right or left. Suitable for tubular frame doors and for mounting on oval roses. Can be combined with a panic bar.Exceptionally long battery life (up to 180,000 operations in wireless online mode) Room for beauty: The AX fitting with its characteristic, adaptive design can be combined with standard lever handles from well-known manufacturers.Maximum data security thanks to the integrated secure element.Operational security is crucial. That's why we have invested in mechanical and electronic quality and stability with the AX fitting. For example, the SmartHandle AX has high-precision handle play. The test for long-term functionality was successfully completed with 1 million cycles.Made in Germany. A matter of course for us.WIRELESS ONLINE NETWORKING (868 MHZ)Reading of 5 different card setupsOpening by releasing the ZK system (quick release) with variable time settingsPermanent release (on/off) with "timer" functionOffice mode with "Timer" functionDoorMonitoring function with forend screw sensor, bolt sensor and latch sensorDoorMonitoring function with external lock sensor (lock not included in the scope of delivery)DoorMonitoring function with time-controlled return functionSite card function with up to 128 cards"Whitelist" function with up to 250 offline cardsAccess list in "offline" modeBattery status transmission and QoS (Quality of Signal)Configurable "keep-alive" event"Solution Guard"Autoconfiguration via SmartIntego Manager (only for TCP/IP GatewayNode variants)Cover contact monitoring

SmartHandle AX - the future of digital door fittings. Can you make good things even better? Yes! The electronic door handle "SmartHandle" is consistently orientated towards your needs and sets new standards. Thanks to its modular design, wide range of variants and innovative communication interfaces such as Bluetooth Low Energy (BLE), SimonsVoss brings a new level of intelligence, convenience and security to the door with the SmartHandle AX.Adaptive design and the interplay of metal elements not only impress visually, but also offer the greatest possible design freedom. The SmartHandle AX digital door fitting is a smart solution for interior doors that can be fixed to the existing rosette hole pattern (DIN 18251) without drilling.A1 - Euro-PZ, suspended installation on round roses, for a lock distance of 70 to 79 mm React flexibly to any situation on site: The SmartHandle AX can be adapted to the door thickness, distance dimension and square. The lever handle can be mounted on the right or left. Suitable for tubular frame doors and for mounting on oval roses. Can be combined with a panic bar.Exceptionally long battery life (up to 180,000 operations in wireless online mode) Room for beauty: The AX fitting with its characteristic, adaptive design can be combined with standard lever handles from well-known manufacturers.Maximum data security thanks to the integrated secure element.Operational security is crucial. That's why we have invested in mechanical and electronic quality and stability with the AX fitting. For example, the SmartHandle AX has high-precision handle play. The test for long-term functionality was successfully completed with 1 million cycles.Made in Germany. A matter of course for us.WIRELESS ONLINE NETWORKING (868 MHZ)Reading of 5 different card setupsOpening by releasing the ZK system (quick release) with variable time settingsPermanent release (on/off) with "timer" functionOffice mode with "Timer" functionDoorMonitoring function with forend screw sensor, bolt sensor and latch sensorDoorMonitoring function with external lock sensor (lock not included in the scope of delivery)DoorMonitoring function with time-controlled return functionSite card function with up to 128 cards"Whitelist" function with up to 250 offline cardsAccess list in "offline" modeBattery status transmission and QoS (Quality of Signal)Configurable "keep-alive" event"Solution Guard"Autoconfiguration via SmartIntego Manager (only for TCP/IP GatewayNode variants)Cover contact monitoring

SmartHandle AX - the future of digital door fittings. Can you make good things even better? Yes! The electronic door handle "SmartHandle" is consistently orientated towards your needs and sets new standards. Thanks to its modular design, wide range of variants and innovative communication interfaces such as Bluetooth Low Energy (BLE), SimonsVoss brings a new level of intelligence, convenience and security to the door with the SmartHandle AX.Adaptive design and the interplay of metal elements not only impress visually, but also offer the greatest possible design freedom. The SmartHandle AX digital door fitting is a smart solution for interior doors that can be fixed to the existing rosette hole pattern (DIN 18251) without drilling.A0 - Euro-PZ, vertical installation on round roses, option for mechanical overlocking React flexibly to any situation on site: The SmartHandle AX can be adapted to the door thickness, distance dimension and square spindle. The lever handle can be mounted on the right or left. Suitable for tubular frame doors and for mounting on oval roses. Can be combined with a panic bar.Exceptionally long battery life (up to 180,000 operations in wireless online mode) Room for beauty: The AX fitting with its characteristic, adaptive design can be combined with standard lever handles from well-known manufacturers.Maximum data security thanks to the integrated secure element.Operational security is crucial. That's why we have invested in mechanical and electronic quality and stability with the AX fitting. For example, the SmartHandle AX has high-precision handle play. The test for long-term functionality was successfully completed with 1 million cycles.Made in Germany. A matter of course for us.WIRELESS ONLINE NETWORKING (868 MHZ)Reading of 5 different card setupsOpening by releasing the ZK system (quick release) with variable time settingsPermanent release (on/off) with "timer" functionOffice mode with "Timer" functionDoorMonitoring function with forend screw sensor, bolt sensor and latch sensorDoorMonitoring function with external lock sensor (lock not included in the scope of delivery)DoorMonitoring function with time-controlled return functionSite card function with up to 128 cards"Whitelist" function with up to 250 offline cardsAccess list in "offline" modeBattery status transmission and QoS (Quality of Signal)Configurable "keep-alive" event"Solution Guard"Autoconfiguration via SmartIntego Manager (only for TCP/IP GatewayNode variants)Cover contact monitoring

SmartHandle AX - the future of digital door fittings. Can you make good things even better? Yes! The electronic door handle "SmartHandle" is consistently orientated towards your needs and sets new standards. Thanks to its modular design, wide range of variants and innovative communication interfaces such as Bluetooth Low Energy (BLE), SimonsVoss brings a new level of intelligence, convenience and security to the door with the SmartHandle AX.Adaptive design and the interplay of metal elements not only impress visually, but also offer the greatest possible design freedom. The SmartHandle AX digital door fitting is a smart solution for interior doors that can be fixed to the existing rosette hole pattern (DIN 18251) without drilling.A3 - Euro-PZ, vertical installation, fixing to enclosed adapter plate, for installation on tubular frame doors with oval roses, option for mechanical overlocking React flexibly to any situation on site: The SmartHandle AX can be adapted to the door thickness, distance dimension and square. The lever handle can be mounted on the right or left. Suitable for tubular frame doors and for mounting on oval roses. Can be combined with a panic bar.Exceptionally long battery life (up to 180,000 operations in wireless online mode) Room for beauty: The AX fitting with its characteristic, adaptive design can be combined with standard lever handles from well-known manufacturers.Maximum data security thanks to the integrated secure element.Operational security is crucial. That's why we have invested in mechanical and electronic quality and stability with the AX fitting. For example, the SmartHandle AX has high-precision handle play. The test for long-term functionality was successfully completed with 1 million cycles.Made in Germany. A matter of course for us.WIRELESS ONLINE NETWORKING (868 MHZ)Reading of 5 different card setupsOpening by releasing the ZK system (quick release) with variable time settingsPermanent release (on/off) with "timer" functionOffice mode with "Timer" functionDoorMonitoring function with forend screw sensor, bolt sensor and latch sensorDoorMonitoring function with external lock sensor (lock not included in the scope of delivery)DoorMonitoring function with time-controlled return functionSite card function with up to 128 cards"Whitelist" function with up to 250 offline cardsAccess list in "offline" modeBattery status transmission and QoS (Quality of Signal)Configurable "keep-alive" event"Solution Guard"Autoconfiguration via SmartIntego Manager (only for TCP/IP GatewayNode variants)Cover contact monitoring

SmartHandle AX Advanced - the electronic door handle for outdoor use Smart security under control in wind and weather Weather-resistant and burglar-proof - a smart door handle that is also ideal for escape routes The SmartHandle AX Advanced shows its advantages particularly when used in external doors and escape routes. In the weather-resistant version, the electronic door handle is protected from all sides against environmental influences such as direct water jets or dust - a major advantage even for free-standing external doors such as fence doors. In the version with security fitting, the SmartHandle AX Advanced offers the highest certified burglary protection. In addition, it can be combined with panic bars in the variant for escape and rescue routes . As part of the modern AX line, the mechatronic door handle is equipped with a secure element, which ensures the secure storage of system-relevant data. All the advantages at a glance: Waterproof and weather-resistant (WP variant with protection class IP66) Highest certified burglary protection ES3 (security fitting variant M1) Compatible with a wide range of panic locks in accordance with EN 1125 (A4 variant) Suitable for tubular frame doors and solid leaf doors Available with mechanical overlocking Quick conversion without wiring No additional drilling usually required thanks to the wide range of variants Bluetooth Low Energy (BLE) ready Secure element for the secure storage of system-relevant data Battery life up to 10 years standby Robust mechanics, tested for 1 million actuations Suitable for offline use, partial networking and full networking Can be operated via transponder, SmartCard, SmartTag, PinCode and smartphone High rotation angle against wear: 50° Operation at -25° to +60°C possible Also suitable for free-standing external doors such as fence doors Wide range of variants for different door situations Lever handle can be mounted on the left and right Suitable for round and oval roses Available as long plate and short plate fitting Can be combined with different lever handles Modular design for maximum compatibility Suitable for door thicknesses from 32 to 185 mm Finish in silver/white, silver/black-grey, brass/white and brass/black-grey Also available for locks with Scandinavian Oval profile Versatile interior/exterior door combinations The SmartHandle AX Advanced is available as a smart door handle in a variety of variants with wide and narrow covers and in different colours - each to suit your installation situation. The combination of the desired outside with the matching inside creates countless possibilities. We will be happy to advise you on your individual combination requirements. Please contact us at ! Technical data: Variants Assembly variants for: - Tubular frame doors (oval rosettes) - Solid leaf doors with Euro-PZ - Swiss Round (round roses, short backplate, Long backplate, security fitting and others), - Scandinavian Oval - Panic bar adaptations Dimensions cover narrow (WxHxD) 42 x 264 x 26 mm Dimensions cover wide (WxHxD) 53 x 272 x 26 mm Door dimensions - Door thickness: 32-185 mm - Distance dimensions: 70-105 mm - Square: 7/8/8.5/9/10 Reading method - Active transponder technology 25 KHz - Passive technology 13.56 MHz (MIFARE ® DESFire®) - Hybrid (active and passive) - BLE ready Operating modes Offline, virtual network and online (combinable) Battery type - 4 x CR2450 3V Lithium Battery life Up to Up to - 10 years Stand-by or - 200.000 operations (active) - 100.000 operations (passive) Temperature range (operation) - -25°C to +60°C Protection class Up to IP66 (option .WP) Signalling - Acoustic (buzzer) - Visual (LED - green/red) Storable accesses Up to 3,000 Time zone groups 100+1 Number of media that can be managed per SmartHandle AX Advanced Up to 64,000 Network capability Direct network capability with integrated LockNode (can be retrofitted) Upgradeable Firmware upgradeable

SmartHandle AX Advanced - the electronic door handle for outdoor use Smart security under control in wind and weather Weather-resistant and burglar-proof - a smart door handle that is also ideal for escape routes The SmartHandle AX Advanced shows its advantages particularly when used in external doors and escape routes. In the weather-resistant version, the electronic door handle is protected from all sides against environmental influences such as direct water jets or dust - a major advantage even for free-standing external doors such as fence doors. In the version with security fitting, the SmartHandle AX Advanced offers the highest certified burglary protection. In addition, it can be combined with panic bars in the variant for escape and rescue routes . As part of the modern AX line, the mechatronic door handle is equipped with a secure element, which ensures the secure storage of system-relevant data. All the advantages at a glance: Waterproof and weather-resistant (WP variant with protection class IP66) Highest certified burglary protection ES3 (security fitting variant M1) Compatible with a wide range of panic locks in accordance with EN 1125 (A4 variant) Suitable for tubular frame doors and solid leaf doors Available with mechanical overlocking Quick conversion without wiring No additional drilling usually required thanks to the wide range of variants Bluetooth Low Energy (BLE) ready Secure element for the secure storage of system-relevant data Battery life up to 10 years standby Robust mechanics, tested for 1 million actuations Suitable for offline use, partial networking and full networking Can be operated via transponder, SmartCard, SmartTag, PinCode and smartphone High rotation angle against wear: 50° Operation at -25° to +60°C possible Also suitable for free-standing external doors such as fence doors Wide range of variants for different door situations Lever handle can be mounted on the left and right Suitable for round and oval roses Available as long plate and short plate fitting Can be combined with different lever handles Modular design for maximum compatibility Suitable for door thicknesses from 32 to 185 mm Finish in silver/white, silver/black-grey, brass/white and brass/black-grey Also available for locks with Scandinavian Oval profile Versatile interior/exterior door combinations The SmartHandle AX Advanced is available as a smart door handle in a variety of variants with wide and narrow covers and in different colours - each to suit your installation situation. The combination of the desired outside with the matching inside creates countless possibilities. We will be happy to advise you on your individual combination requirements. Please contact us at ! Technical data: Variants Installation variants for: - Tubular frame doors (oval roses) - Solid leaf doors with Euro-PZ - Swiss Round (round roses, short backplate, Long backplate, security fitting and others), - Scandinavian Oval - Panic bar adaptations Dimensions cover narrow (WxHxD) 42 x 264 x 26 mm Wide cover dimensions (WxHxD) 53 x 272 x 26 mm Door dimensions - Door thickness: 32-185 mm - Distance dimensions: 70-105 mm - Square: 7/8/8.5/9/10 Reading method - Active transponder technology 25 KHz - Passive technology 13.56 MHz (MIFARE ® DESFire®) - Hybrid (active and passive) - BLE ready Operating modes Offline, virtual network and online (combinable) Battery type - 4 x CR2450 3V Lithium Battery life Up to Up to - 10 years Stand-by or - 200,000 activations (active) - 100,000 activations (passive) Temperature range (operation) - -25°C to +60°C Protection class Up to IP66 (option .WP) Signalling - Acoustic (buzzer) - Visual (LED - green/red) Storable accesses Up to 3,000 Time zone groups 100+1 Number of media that can be managed per SmartHandle AX Advanced Up to 64,000 Network capability Direct network capability with integrated LockNode (can be retrofitted) Upgradeable Firmware upgradeable

SmartHandle AX Advanced - the electronic door handle for outdoor use Smart security under control in wind and weather Weather-resistant and burglar-proof - a smart door handle that is also ideal for escape routes The SmartHandle AX Advanced shows its advantages particularly when used in external doors and escape routes. In the weather-resistant version, the electronic door handle is protected from all sides against environmental influences such as direct water jets or dust - a major advantage even for free-standing external doors such as fence doors. In the version with security fitting, the SmartHandle AX Advanced offers the highest certified burglary protection. In addition, it can be combined with panic bars in the variant for escape and rescue routes . As part of the modern AX line, the mechatronic door handle is equipped with a secure element, which ensures the secure storage of system-relevant data. All the advantages at a glance: Waterproof and weather-resistant (WP variant with protection class IP66) Highest certified burglary protection ES3 (security fitting variant M1) Compatible with a wide range of panic locks in accordance with EN 1125 (A4 variant) Suitable for tubular frame doors and solid leaf doors Available with mechanical overlocking Quick conversion without wiring No additional drilling usually required thanks to the wide range of variants Bluetooth Low Energy (BLE) ready Secure element for the secure storage of system-relevant data Battery life up to 10 years standby Robust mechanics, tested for 1 million actuations Suitable for offline use, partial networking and full networking Can be operated via transponder, SmartCard, SmartTag, PinCode and smartphone High rotation angle against wear: 50° Operation at -25° to +60°C possible Also suitable for free-standing external doors such as fence doors Wide range of variants for different door situations Lever handle can be mounted on the left and right Suitable for round and oval roses Available as long plate and short plate fitting Can be combined with different lever handles Modular design for maximum compatibility Suitable for door thicknesses from 32 to 185 mm Finish in silver/white, silver/black-grey, brass/white and brass/black-grey Also available for locks with Scandinavian Oval profile Versatile interior/exterior door combinations The SmartHandle AX Advanced is available as a smart door handle in a variety of variants with wide and narrow covers and in different colours - each to suit your installation situation. The combination of the desired outside with the matching inside creates countless possibilities. We will be happy to advise you on your individual combination requirements. Please contact us at ! Technical data: Variants Installation variants for: - Tubular frame doors (oval roses) - Solid leaf doors with Euro-PZ - Swiss Round (round roses, short backplate, Long backplate, security fitting and others), - Scandinavian Oval - Panic bar adaptations Dimensions cover narrow (WxHxD) 42 x 264 x 26 mm Wide cover dimensions (WxHxD) 53 x 272 x 26 mm Door dimensions - Door thickness: 32-185 mm - Distance dimensions: 70-105 mm - Square: 7/8/8.5/9/10 Reading method - Active transponder technology 25 KHz - Passive technology 13.56 MHz (MIFARE ® DESFire®) - Hybrid (active and passive) - BLE ready Operating modes Offline, virtual network and online (combinable) Battery type - 4 x CR2450 3V Lithium Battery life Up to Up to - 10 years Stand-by or - 200,000 activations (active) - 100,000 activations (passive) Temperature range (operation) - -25°C to +60°C Protection class Up to IP66 (option .WP) Signalling - Acoustic (buzzer) - Visual (LED - green/red) Storable accesses Up to 3,000 Time zone groups 100+1 Number of media that can be managed per SmartHandle AX Advanced Up to 64,000 Network capability Direct network capability with integrated LockNode (can be retrofitted) Upgradeable Firmware upgradeable

SmartHandle AX Advanced - the electronic door handle for outdoor use Smart security under control in wind and weather Weather-resistant and burglar-proof - a smart door handle that is also ideal for escape routes The SmartHandle AX Advanced shows its advantages particularly when used in external doors and escape routes. In the weather-resistant version, the electronic door handle is protected from all sides against environmental influences such as direct water jets or dust - a major advantage even for free-standing external doors such as fence doors. In the version with security fitting, the SmartHandle AX Advanced offers the highest certified burglary protection. In addition, it can be combined with panic bars in the variant for escape and rescue routes . As part of the modern AX line, the mechatronic door handle is equipped with a secure element, which ensures the secure storage of system-relevant data. All the advantages at a glance: Waterproof and weather-resistant (WP variant with protection class IP66) Highest certified burglary protection ES3 (security fitting variant M1) Compatible with a wide range of panic locks in accordance with EN 1125 (A4 variant) Suitable for tubular frame doors and solid leaf doors Available with mechanical overlocking Quick conversion without wiring No additional drilling usually required thanks to the wide range of variants Bluetooth Low Energy (BLE) ready Secure element for the secure storage of system-relevant data Battery life up to 10 years standby Robust mechanics, tested for 1 million actuations Suitable for offline use, partial networking and full networking Can be operated via transponder, SmartCard, SmartTag, PinCode and smartphone High rotation angle against wear: 50° Operation at -25° to +60°C possible Also suitable for free-standing external doors such as fence doors Wide range of variants for different door situations Lever handle can be mounted on the left and right Suitable for round and oval roses Available as long plate and short plate fitting Can be combined with different lever handles Modular design for maximum compatibility Suitable for door thicknesses from 32 to 185 mm Finish in silver/white, silver/black-grey, brass/white and brass/black-grey Also available for locks with Scandinavian Oval profile Versatile interior/exterior door combinations The SmartHandle AX Advanced is available as a smart door handle in a variety of variants with wide and narrow covers and in different colours - each to suit your installation situation. The combination of the desired outside with the matching inside creates countless possibilities. We will be happy to advise you on your individual combination requirements. Please contact us at ! Technical data: Variants Assembly variants for: - Tubular frame doors (oval rosettes) - Solid leaf doors with Euro-PZ - Swiss Round (round roses, short backplate, Long backplate, security fitting and others), - Scandinavian Oval - Panic bar adaptations Dimensions cover narrow (WxHxD) 42 x 264 x 26 mm Dimensions cover wide (WxHxD) 53 x 272 x 26 mm Door dimensions - Door thickness: 32-185 mm - Distance dimensions: 70-105 mm - Square: 7/8/8.5/9/10 Reading method - PActive transponder technology 25 KHz - Passive technology 13.56 MHz (MIFARE ® DESFire®) - Hybrid (active and passive) - BLE ready Operating modes Offline, virtual network and online (can be combined) Battery type - 4 x CR2450 3V Lithium Battery life Up to Up to - 10 years Stand-by or - 200.000 operations (active) - 100.000 operations (passive) Temperature range (operation) - -25°C to +60°C Protection class Up to IP66 (option .WP) Signalling - Acoustic (buzzer) - Visual (LED - green/red) Storable accesses Up to 3,000 Time zone groups 100+1 Number of media that can be managed per SmartHandle AX Advanced Up to 64,000 Network capability Direct network capability with integrated LockNode (can be retrofitted) Upgradeable Firmware upgradeable

SmartHandle AX Advanced - the electronic door handle for outdoor use Smart security under control in wind and weather Weather-resistant and burglar-proof - a smart door handle that is also ideal for escape routes The SmartHandle AX Advanced shows its advantages particularly when used in external doors and escape routes. In the weather-resistant version, the electronic door handle is protected from all sides against environmental influences such as direct water jets or dust - a major advantage even for free-standing external doors such as fence doors. In the version with security fitting, the SmartHandle AX Advanced offers the highest certified burglary protection. In addition, it can be combined with panic bars in the variant for escape and rescue routes . As part of the modern AX line, the mechatronic door handle is equipped with a secure element, which ensures the secure storage of system-relevant data. All the advantages at a glance: Waterproof and weather-resistant (WP variant with protection class IP66) Highest certified burglary protection ES3 (security fitting variant M1) Compatible with a wide range of panic locks in accordance with EN 1125 (A4 variant) Suitable for tubular frame doors and solid leaf doors Available with mechanical overlocking Quick conversion without wiring No additional drilling usually required thanks to the wide range of variants Bluetooth Low Energy (BLE) ready Secure element for the secure storage of system-relevant data Battery life up to 10 years standby Robust mechanics, tested for 1 million actuations Suitable for offline use, partial networking and full networking Can be operated via transponder, SmartCard, SmartTag, PinCode and smartphone High rotation angle against wear: 50° Operation at -25° to +60°C possible Also suitable for free-standing external doors such as fence doors Wide range of variants for different door situations Lever handle can be mounted on the left and right Suitable for round and oval roses Available as long plate and short plate fitting Can be combined with different lever handles Modular design for maximum compatibility Suitable for door thicknesses from 32 to 185 mm Finish in silver/white, silver/black-grey, brass/white and brass/black-grey Also available for locks with Scandinavian Oval profile Versatile interior/exterior door combinations The SmartHandle AX Advanced is available as a smart door handle in a variety of variants with wide and narrow covers and in different colours - each to suit your installation situation. The combination of the desired outside with the matching inside creates countless possibilities. We will be happy to advise you on your individual combination requirements. Please contact us at ! Technical data: Variants Assembly variants for: - Tubular frame doors (oval rosettes) - Solid leaf doors with Euro-PZ - Swiss Round (round roses, short backplate, Long backplate, security fitting and others), - Scandinavian Oval - Panic bar adaptations Dimensions cover narrow (WxHxD) 42 x 264 x 26 mm Dimensions cover wide (WxHxD) 53 x 272 x 26 mm Door dimensions - Door thickness: 32-185 mm - Distance dimensions: 70-105 mm - Square: 7/8/8.5/9/10 Reading method - Active transponder technology 25 KHz - Passive technology 13.56 MHz (MIFARE ® DESFire®) - Hybrid (active and passive) - BLE ready Operating modes Offline, virtual network and online (can be combined) Battery type - 4 x CR2450 3V Lithium Battery life Up to Up to - 10 years Stand-by or - 200.000 operations (active) - 100.000 operations (passive) Temperature range (operation) - -25°C to +60°C Protection class Up to IP66 (option .WP) Signalling - Acoustic (buzzer) - Visual (LED - green/red) Storable accesses Up to 3,000 Time zone groups 100+1 Number of media that can be managed per SmartHandle AX Advanced Up to 64,000 Network capability Direct network capability with integrated LockNode (can be retrofitted) Upgradeable Firmware upgradeable

SmartHandle AX Advanced - the electronic door handle for outdoor use Smart security under control in wind and weather Weather-resistant and burglar-proof - a smart door handle that is also ideal for escape routes The SmartHandle AX Advanced shows its advantages particularly when used in external doors and escape routes. In the weather-resistant version, the electronic door handle is protected from all sides against environmental influences such as direct water jets or dust - a major advantage even for free-standing external doors such as fence doors. In the version with security fitting, the SmartHandle AX Advanced offers the highest certified burglary protection. In addition, it can be combined with panic bars in the variant for escape and rescue routes . As part of the modern AX line, the mechatronic door handle is equipped with a secure element, which ensures the secure storage of system-relevant data. All the advantages at a glance: Waterproof and weather-resistant (WP variant with protection class IP66) Highest certified burglary protection ES3 (security fitting variant M1) Compatible with a wide range of panic locks in accordance with EN 1125 (A4 variant) Suitable for tubular frame doors and solid leaf doors Available with mechanical overlocking Quick conversion without wiring No additional drilling usually required thanks to the wide range of variants Bluetooth Low Energy (BLE) ready Secure element for the secure storage of system-relevant data Battery life up to 10 years standby Robust mechanics, tested for 1 million actuations Suitable for offline use, partial networking and full networking Can be operated via transponder, SmartCard, SmartTag, PinCode and smartphone High rotation angle against wear: 50° Operation at -25° to +60°C possible Also suitable for free-standing external doors such as fence doors Wide range of variants for different door situations Lever handle can be mounted on the left and right Suitable for round and oval roses Available as long plate and short plate fitting Can be combined with different lever handles Modular design for maximum compatibility Suitable for door thicknesses from 32 to 185 mm Finish in silver/white, silver/black-grey, brass/white and brass/black-grey Also available for locks with Scandinavian Oval profile Versatile interior/exterior door combinations The SmartHandle AX Advanced is available as a smart door handle in a variety of variants with wide and narrow covers and in different colours - each to suit your installation situation. The combination of the desired outside with the matching inside creates countless possibilities. We will be happy to advise you on your individual combination requirements. Please contact us at ! Technical data: Variants Assembly variants for: - Tubular frame doors (oval rosettes) - Solid leaf doors with Euro-PZ - Swiss Round (round roses, short backplate, Long backplate, security fitting and others), - Scandinavian Oval - Panic bar adaptations Dimensions cover narrow (WxHxD) 42 x 264 x 26 mm Dimensions cover wide (WxHxD) 53 x 272 x 26 mm Door dimensions - Door thickness: 32-185 mm - Distance dimensions: 70-105 mm - Square: 7/8/8.5/9/10 Reading method - Active transponder technology 25 KHz - Passive technology 13.56 MHz (MIFARE ® DESFire®) - Hybrid (active and passive) - BLE ready Operating modes Offline, virtual network and online (combinable) Battery type - 4 x CR2450 3V Lithium Battery life Up to Up to - 10 years Stand-by or - 200.000 operations (active) - 100.000 operations (passive) Temperature range (operation) - -25°C to +60°C Protection class Up to IP66 (option .WP) Signalling - Acoustic (buzzer) - Visual (LED - green/red) Storable accesses Up to 3,000 Time zone groups 100+1 Number of media that can be managed per SmartHandle AX Advanced Up to 64,000 Network capability Direct network capability with integrated LockNode (can be retrofitted) Upgradeable Firmware upgradeable
